    Bosch Motorsport FP165 High Flow Competition Fuel Pump
    Bosch Motorsport Bosch Motorsport FP200 (044) High Flow Competition Fuel Pump Genuine Bosch Motorsport 044 high flow fuel pumps, sealed in the original box. Can pump up to 200lph.. Product #: BOS0580254044 Regular price: $275.00 $275.00

    Bosch Motorsport FP200 (044) High Flow Competition Fuel Pump

    Brand: Bosch Motorsport
    Product Code: BOS0580254044
    Weight: 1.00kg
    Dimensions: 20.00cm x 6.00cm x 6.00cm

    Price: $302.50

    - +

    Ask Question

    Email a Friend

    Download PDF

    The FP 200 is an inline roller cell pump for the installation outside or inside the fuel tank. It is capable of providing 200 l/h at 5 bar. Biofuel can be delivered up to E85 although this does shorten lifetime.

    The FP 200 is one of the most popular aftermarket fuel pumps especially at this price.

    When purchasing 044 pumps, only genuine Bosch pumps have the blue box and security foil seal (see pictures).

    Application

    Fuel pressure 5 bar

    Delivery rate at 5 bar and 22°C 260 ± 5 l/h at 14 V

    Pressure limiting valve 10 to 12.5 bar rel.

    Fuel compatibility E85

    Operating temperature range -20 to 90°C

    Storage temperature range -40 to 70°C

    Max. vibration 3 mm at 10 to 18 Hz ≤40 m/s2 at 18 to 60 Hz

    Mechanical Data

    Diameter 60 mm

    Length 196 mm

    Weight 1,030 g

    Mounting Clamping

    Electrical Data

    Supply voltage 6 to 16.5 V

    Operating voltage 13.8 V

    Load current at 5 bar and 22°C 14 ± 1 A

    Load current at 8 bar and 22°C 15 ± 1 A

    Characteristic

    Surface coating None

    Color Silver

    Non-return valve External

    Fuel filtering External, on pressure side

    Connectors and Wires

    Electrical connector +M6/-M5

    Electrical matting connector With ring wire M6 and M5

    Mechanical connector intake side M18x1.5

    Mechanical connector pressure side M12x1.5

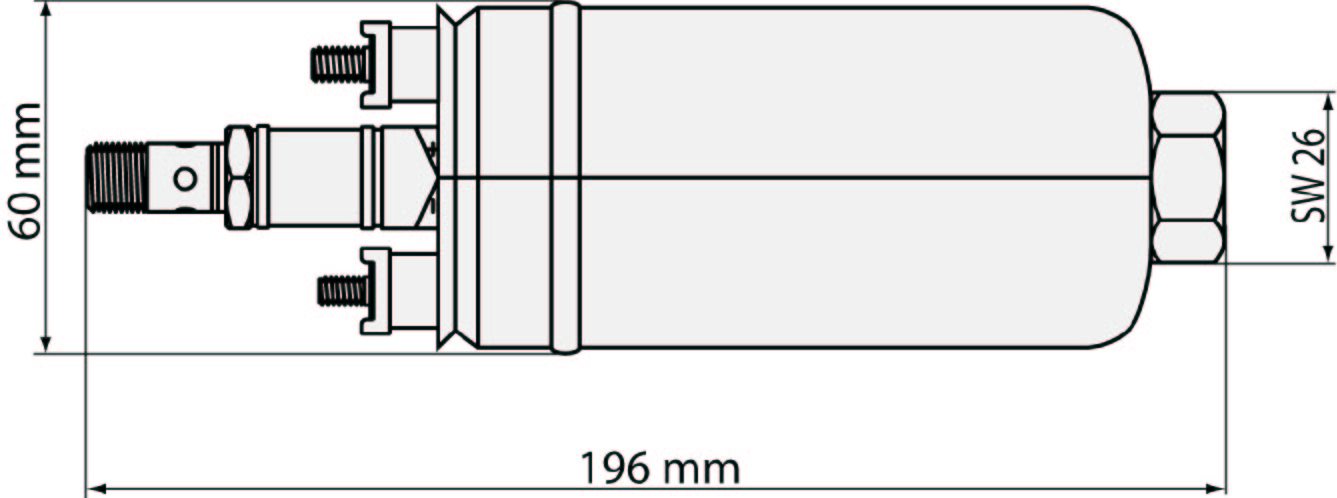

    FP200DWG

    FP200 VvsA

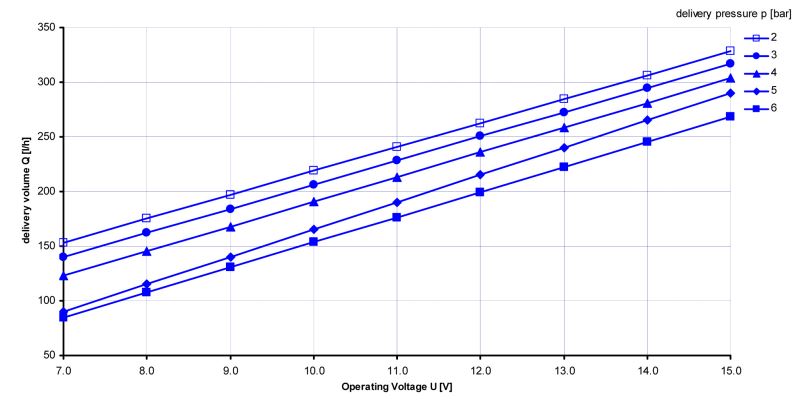

    FP200 VvsQ



    Lamborghini LP560GT3/LP600GT3/FL2/R-Ex (PN GT3201014A)
